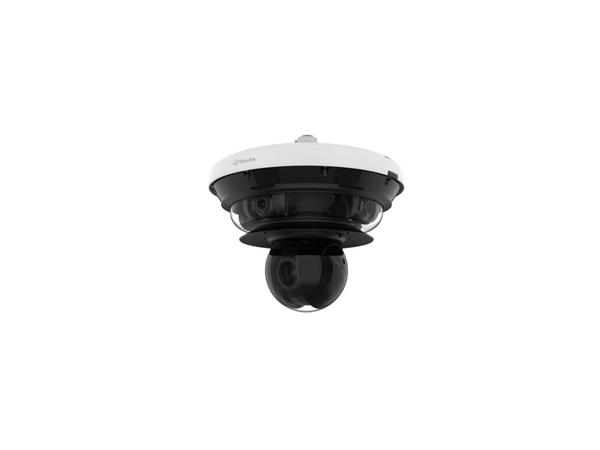

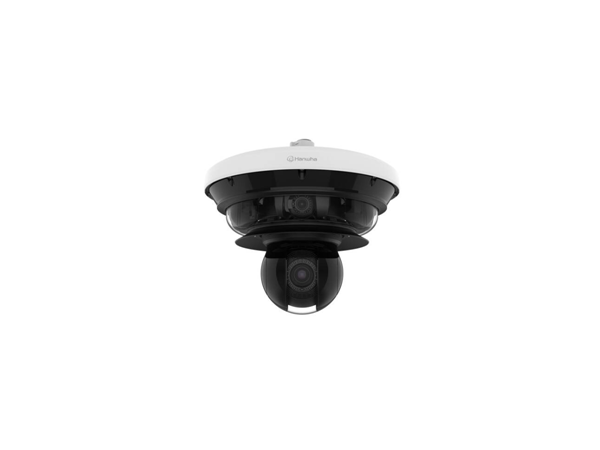

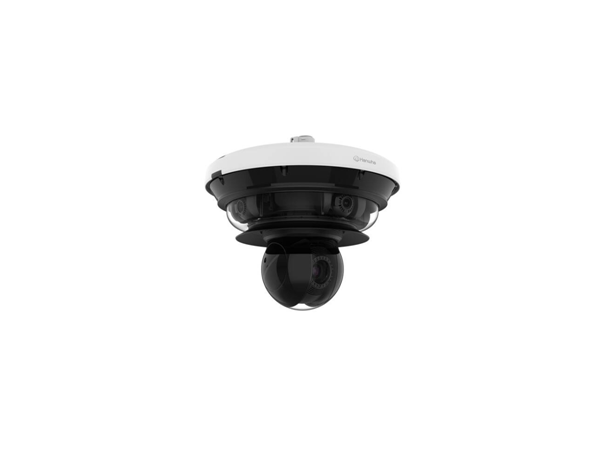

Description Hanwha PNM-C34404RQPZ

Key Benefits:

• The 5CH AI Multi-directional camera provides 360° object detection and classification, powered by deep-learning AI, for identifying people, faces, vehicle types and licence plates in real time

• Utilising AI-based object detection reduces false alarms, with irrelevant motion, such as waving trees and moving shadows, ignored

• Exceptional image quality of up to 4K on the 4 fixed sensors and 2MP 40x on the PTZ offers a high level of detail for monitoring large and complex scenes

• By leveraging AI for classification, relevant events can quickly be found to assist forensic search, improving operational efficiency

• Full suite of intruder detection video analytics, including virtual line and area crossing, to keep areas safe and free from trespassing

• Cost-effective solution – multi-sensor cameras use less cable, conduit and mounting hardware, compared to what would normally be required to enable up to 5 separate cameras to do the same job. With less network connections, they also require fewer switches

• Reduced installation time – only 1 device needs to be installed instead of many separate devices, 1 VMS license and 1 cable connection. In addition, the PTRZ function simplifies installation, and after mounting the camera all adjustments can be done remotely

• Quick, easy and intuitive installation via a smart semi-modular design that has a microSD card and reset button accessible by removing the dome cover

• 4 independent IR zones make the camera highly effective in all lighting conditions

• Hard-coated dome bubble provides reinforced durability to protect the camera

Key Features:

• 120dB WDR

• 44~142.6mm (Optical 40x) lens

• PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger

• 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)

• 15FPS AI ON, 20FPS AI OFF

• 2MP @ 60FPS PTZ with 40x zoom

• IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)

• 265, H.264, MJPEG triple codec

• Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear

• WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)

• I/O Box compatibility

• TPM with FIPS 140-2 level 2

• micro SD card 512GB x2

• IP66, IK10, NEMA4X

• Operating Temperature: -40°C~+50°C(-40°F~+122°F)

• HPoE (injector included)

• Hard-coated dome bubble
