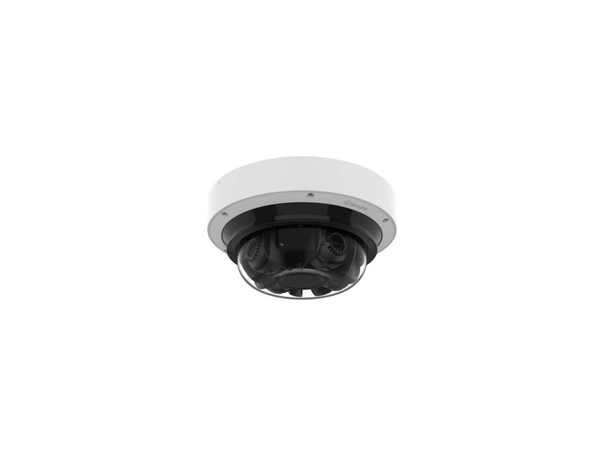

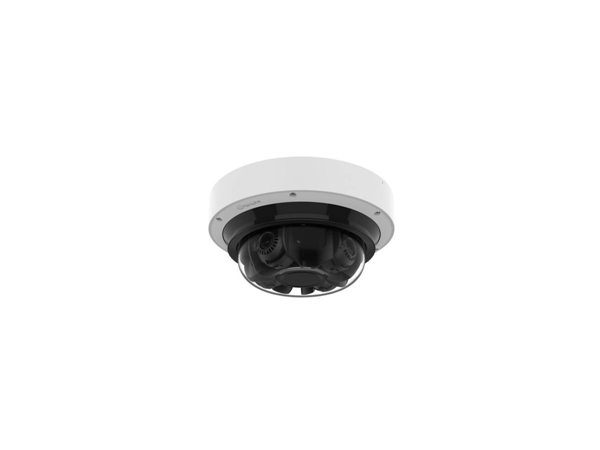

Description Hanwha PNM-C16083RVQ

Key Benefits:

• The 4CH AI Multi-directional camera provides 360° object detection and classification, powered by deep-learning AI, for identifying people, faces, vehicle types and licence plates in real time

• Utilising AI-based object detection reduces false alarms, with irrelevant motion, such as waving trees and moving shadows, ignored

• Exceptional image quality of up to 4K on the 4 fixed sensors offers a high level of detail for monitoring large and complex scenes

• By leveraging AI for classification, relevant events can quickly be found to assist forensic search, improving operational efficiency

• Full suite of intruder detection video analytics, including virtual line and area crossing, to keep areas safe and free from trespassing

• Cost-effective solution – multi-sensor cameras use less cable, conduit and mounting hardware, compared to what would normally be required to enable up to 4 separate cameras to do the same job. With less network connections, they also require fewer switches

• Reduced installation time – only 1 device needs to be installed instead of many separate devices, 1 VMS license and 1 cable connection

• Quick, easy and intuitive installation via a smart semi-modular design that has a microSD card and reset button accessible by removing the dome cover

• 4 independent IR zones make the camera highly effective in all lighting conditions

• Hard-coated dome bubble provides reinforced durability to protect the camera

Key Features:

• 4MP x 4CH Multi-directional camera, using one IP address

• 30fps@4MP (H.265, H.264)

• 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorised varifocal lens

• Integrated IR that rotates with camera head, IR viewable length WiseIR 15m (49.21ft)

• H.265, H.264, MJPEG codec, Multi streaming

• 120dB WDR

• USB port for easy installation

• Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Appear/Disappear

• WiseNR Ⅱ(using AI engine), WiseStreamⅢ(Based on AI engine)

• I/O Box compatibility for audio & alarm I/O

• TPM with FIPS 140-2 level 2

• micro SD card 512GB x2

• Operating Temperature: -40°C~+55°C(-40°F~+131°F)

• PoE+ powered

• Hard-coated dome bubble

• IP66, IK10, NEMA4X

• Easy gangbox mounting installation

Specifications
