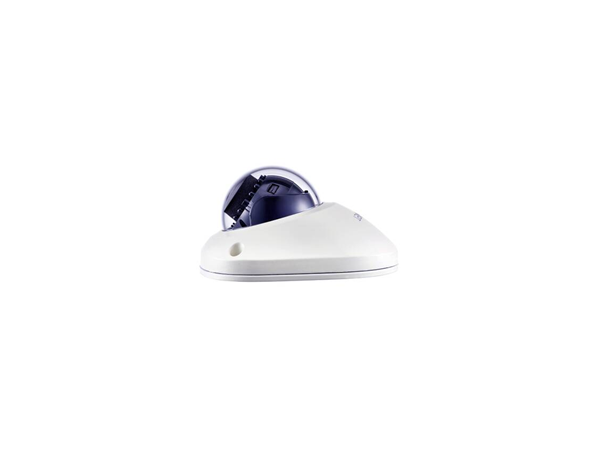

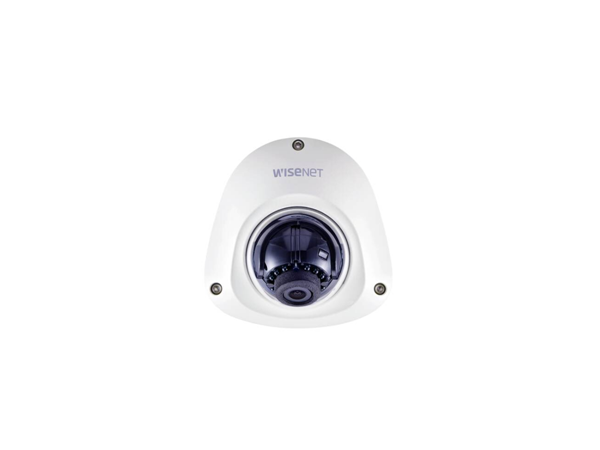

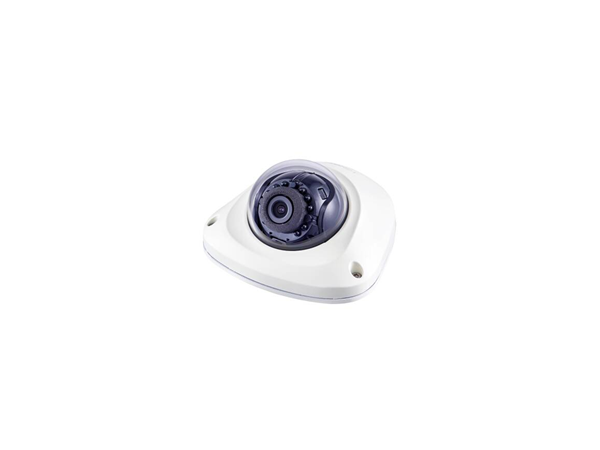

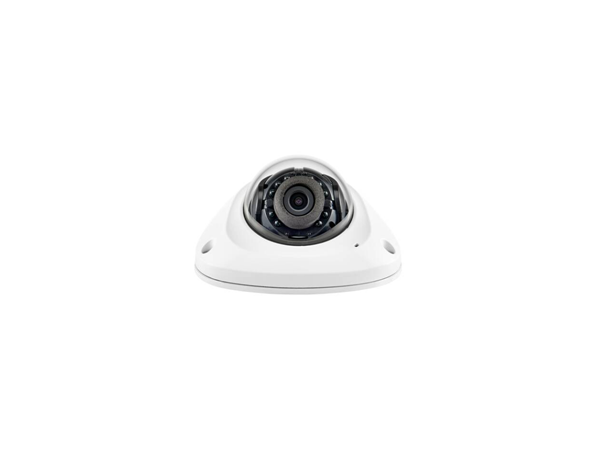

Hanwha ANV-L6023R
Outdoor Vandal-Resistant Mini Dome 2MP, 3.6mm lens, IR, IK10

Request a quote

You will receive an offer for the following products
Hanwha ANV-L6023R
Outdoor Vandal-Resistant Mini Dome 2MP, 3.6mm lens, IR, IK10
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha ANV-L6023R

Wisenet A-Series Mini Outdoor Vandalism Dome Camera, 2 MP @ 30 FPS, 3.6mm Fixed Focal Lens, FoV H: 94.8°/V: 49.3°, WiseStream II, Triple Codec (H. 265/H.264/MJPEG), 120 dB WDR, IR LEDs 15 m (49.21 ft), day and night (ICR), virtual area (intrusion/entry/exit), virtual line (intersection/direction), motion detection, tamper, corridor view, SD card, IP66, PoE, white.

Key Features:

  • 2 megapixel resolution (1920 x 1080).

  • 3.6mm lens with 94.8° HFoV

  • 30 fps at all resolutions (H.265/H.264)

  • H.265/H.264, MJPEG codec support, multiple streaming

  • Day and night (ICR), WDR (120dB)

  • Blur detection, direction detection, motion detection, entry/exit, tamper

  • Micro SD/SDHC memory slot (max. 32 GB), PoE

  • Hallway view, WiseStream II support

  • IR visible length 15m

  • IP66, IK10, NEMA4X support


Specifications

Product

Model numberANV-L6023R
GTIN code8801089228666
BrandHanwha
Category

IP Cameras

Dome

Camera Properties

Outdoor

Built-in infrared

Vandal resistant

Basic Functionality

Day and night

Local Storage

Resolution

1080p (2MP)

Hanwha Series

Wisenet A

Angle of View

91° - 100°

Encoding

H264

H265

MJPEG



Download
File name Filesize Filename extension Update date Download
DataSheet 0
User manual 0
Installation manual 2.05 MB pdf
Product dimensions 177.76 KB pdf
