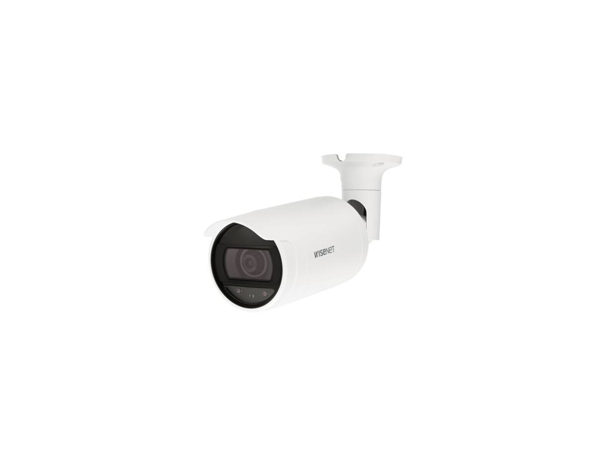

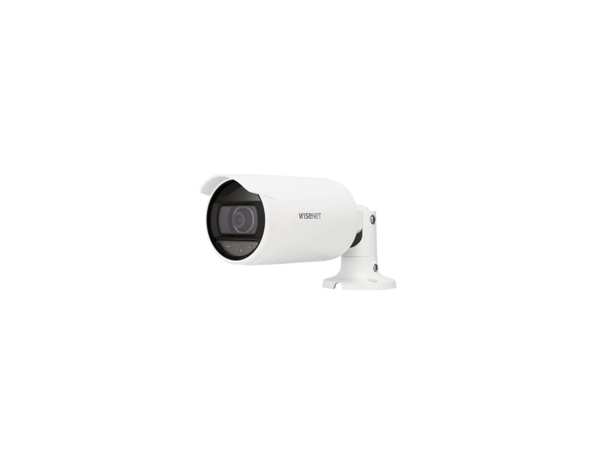

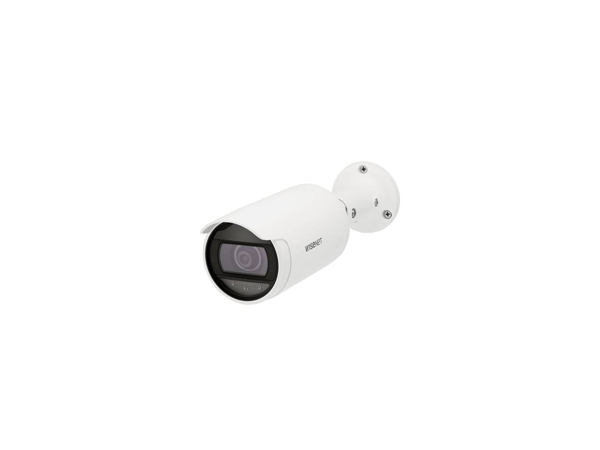

Hanwha ANO-L7022R
Outdoor Bullet 4MP camera, 30fps, IR, fixed lens 4mm 78.2°

Request a quote

You will receive an offer for the following products
Hanwha ANO-L7022R
Outdoor Bullet 4MP camera, 30fps, IR, fixed lens 4mm 78.2°
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha ANO-L7022R

Wisenet A Series bullet camera, 4MP @ 30 FPS, 4mm fixed focal lens, WiseStreamII, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 25m(82.02ft), day & night (ICR), FOV H: 78.3° / V: 42.9°, virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, SD card, IP66, PoE, white.

Key Features:

  • 4 MP resolution, up to 30 fps (H.265/H.264)

  • Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on)

  • 4mm lens with 78.2° HFoV

  • IR visible length: 25m

  • Day and night (ICR), WDR (120dB)

  • H.265, H.264, MJPEG, multiple streaming supported

  • Blur detection, direction detection, motion detection, tampering

  • (90⁰/270⁰), LDC support, WiseStream II

  • Micro SD/SDHC/SDXC memory slot (max. 128 GB)

  • IP66


Specifications

Product

Model numberANO-L7022R
GTIN code8801089228611
BrandHanwha
Category

IP Cameras

Bullet

Camera Properties

Outdoor

Built-in infrared

Basic Functionality

Day and night

Local Storage

Resolution

4MP

Hanwha Series

Wisenet A

Angle of View

61° - 90°

Encoding

H264

H265

MJPEG



Download
File name Filesize Filename extension Update date Download
DataSheet 0
User manual 0
Installation manual 0
Product dimensions 0
